uCLS1012A-IoT

Cloud Edge and Device Gateways

The power of an Arm v8 64-bit processor combined with the simple integration of a SMARC module.

Buy Now

Containers at the farthest corners of the edge

The uCLS1012A-IoT supports standard Linux container platforms, making cloud native possible all the way to the edge and beyond.

A shining light in a foggy world

High-speed USB3, SATA, PCIe and two highspeed Ethernets make the uCLS1012A-IoT perfect for edge storage, cloud edge caching or store and forward gateways. Make sure your on-premises performance shines no matter what the upstream is.

The 10-4 on 15.4 networks

Supporting an optional microcontroller running 802.15.4 network stacks for BLE, Thread® or Zigbee®. The uCLS1012A-IoT module makes the perfect aggregator or gateway to connect you to your wireless devices.

Edge software that gives you the edge

With standard Linux platform support in Buildroot and available Mbarx Secure IoT gateway or SIPxtream voice/video communications stacks, unleash your next edge application with the uCLS1012A-IoT.

Applications

Get the performance and reliability demanding edge devices need.

IoT Gateways

IoT Gateways

  • Secure on-premises, remote site and cloud-edge connectivity
  • Telemetry data aggregation, caching and buffering
  • Remote site management and endpoint maintenance
  • Workflow and process control systems and supervision
  • Radio gateways and wireless access points

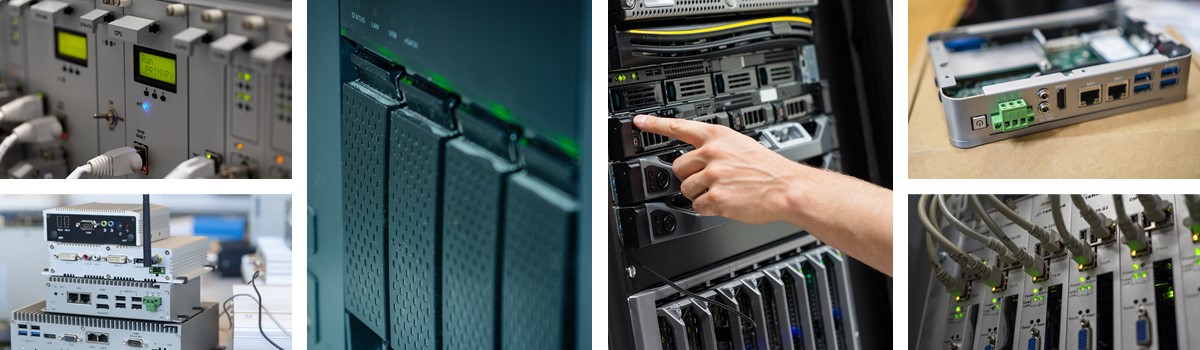

Cloud Edge

Cloud Edge

  • Docker container deployment
  • Microservices, PaaS and SaaS
  • Fog nodes, cloud native services and applications
  • On-premises data caching, buffering and connectivity
Secure Access and Connectivity

Secure Access and Connectivity

  • Edge access controllers, VPNs and secure gateways
  • Data aggregation, store / forward and preprocessing nodes
  • Network isolation, QoS, traffic shaping and routing
  • Wired, Wi-Fi, LTE and 802.15.4 communication bridging

Product Specifications

Easily integrated, Linux enabled with support and software stacks to get you to market.

  • uCLS1012A-IoT module
  • Module host board, cables, power supply
  • Support site access (1 year)
  • Installation and maintenance support (1 year)
  • Documentation, integration schematics
  • Mbarx firmware with WebUI and Site Controller support
  • Mbarx System Manager tool (Win/Mac free trial)
  • Mbarx Virtual Control Panel tool (Win/Mac)
Buy Now

Hardware

Core Processor and Memory
  • NXP QorIQ® LS1012A processor
  • 800MHz 64-bit, Arm® Cortex®-A53 (Arm® v8) core
  • 512MByte DDR3-SDRAM
  • 64MByte QuadSPI NOR flash (up to 128MByte)
  • 32GByte eMMC (optional)
Connectivity and Peripherals
  • 2x Gigabit Ethernet
  • Packet Forwarding Engine (PFE)
  • Security engine (SEC)
  • PCIe Gen 2
  • SATA Gen 3
  • USB 3.0 host
  • SDIO 3.0
  • SPI, UART, I2C, SAI/I2S
  • Up to 16 GPIO (1.1-3.6VDC tolerant)
  • Audio subsystem with class-D amplifier (optional)
  • 802.15.4 radio with BLE/Thread® stacks (optional)
Physical and Ratings
  • +3.3VDC +/- 5% 6W max (TBR)
  • -40°C to +85°C parts rating (TJ)
  • 315-pin SMARC (MXM 3.0) module mating connector (MM70-314-310B1-2-R300)
  • 82 x 50mm physical size

Software

System Software
  • Linux OS with standard networking, DHCP, DNS, NTP
  • Standard Buildroot platform support (downloadable) https://buildroot.org/
  • Preinstalled Mbarx Secure IoT Firmware
  • Downloadable value add software
Mbarx Secure IoT
  • Device management, configuration and WebUI
  • TLS v1.2 encryption, x509 certificate authentication
  • OTA firmware updates
  • Auto firmware upgrades
  • Connection origination service (call home)
  • Configuration template/file provisioning
  • System alarms
  • Remote system logging
  • Factory reset
  • Host protocol for configuration/operation by UART or TCP/IP
  • Linux control application with integration example
  • 802.1x port authentication (optional)
  • SNMP v2c (optional)
  • Compatible with Mbarx tools and gateways
Mbarx Secure IoT Site Controller Gateway
  • IoT gateway capability
  • Auto firmware update service
  • Remote IoT site connectivity
  • Compatible with Mbarx endpoints, tools and gateways
uCLS1012A-IoT Block Diagram

Additional Information

Learn more about how uCLS1012A-IoT can help you.

uCLS1012A-IoT
uCLS1012A-IoT

Factsheet

Open
Enabling Secure IoT Systems using Mbarx
Enabling Secure IoT Systems using Mbarx

Whitepaper

REQUEST
Mbarx IoT Gateway Software
Mbarx IoT Gateway Software

YouTube Video

View
Mbarx Secure IoT
Mbarx Secure IoT

Webinar Recording

View
uCLS1012A-IoT Module Top
uCLS1012A-IoT Module Bottom
uCLS1012A-IoT Module Breakdown Top
uCLS1012A-IoT Module Breakdown Bottom
uCLS1012A-IoT Development Kit
uCLS1012A-IoT Block Diagram
